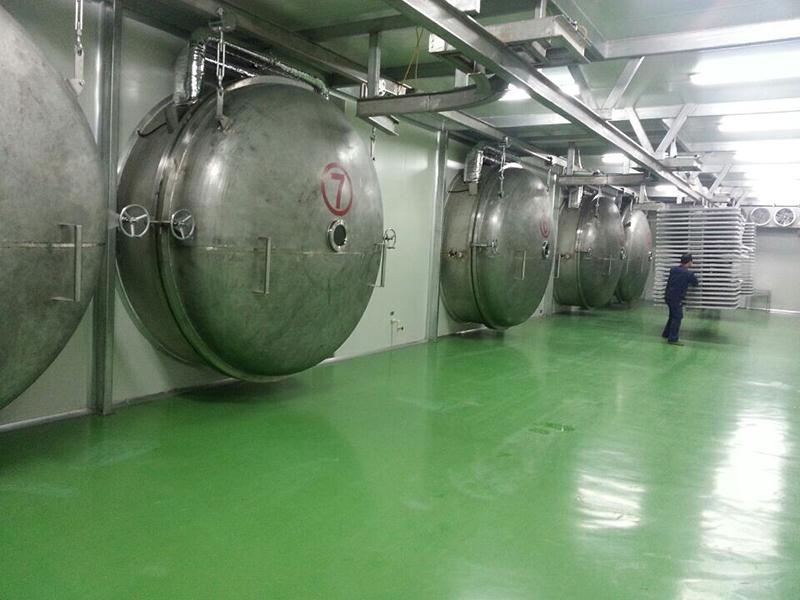

The BLK2000kg industrial freeze dryer's capacity is 2000kg with an effective freeze drying area of 200m2. It is applicable to the freeze drying of produce, flowers, medicines, bio-products, chemicals and liquid food.
Freeze dried flowers and vegetables
| Model || BLK2000kg |
| Shape and Size || Circular 2800*17000mm |
| Installed Power || 320kw- the actual usage generally ranges between 60 60 80% of the full power, i.e, 190 to 250kw |
| Tray's Area || 196.2m2 |
| Shelf || 46 |
| Cold Trap Temperature || -40℃~-60℃ |
| Vacuum Degree || ≥15Pa |
| Heating way || Steam or Electric heating |
| Capacity || 2000KG |
* Not only do we offer the above models, but we can customize the freeze dryers to have a 0.5m2-200m2 effective freeze-drying area based on customer requirements.
- Different from traditional drying equipment that requires an additional quick freeze machine or cold storage, this freeze dryer completes both freezing and drying.
- An ultra-large, effective freeze drying area allows the freeze dryer to be applied in the production of ultra-large scale frozen and dried food.
- It saves anywhere between 20 and 30% of energy when compared to other similar products available on the market today.
- High automation degree: a single operator can operate multiple devices, saving labor costs.
- The waste heat recovery system developed in house is used, saving operation costs.
- Various fault alarms ensure operation is more stable and safe.

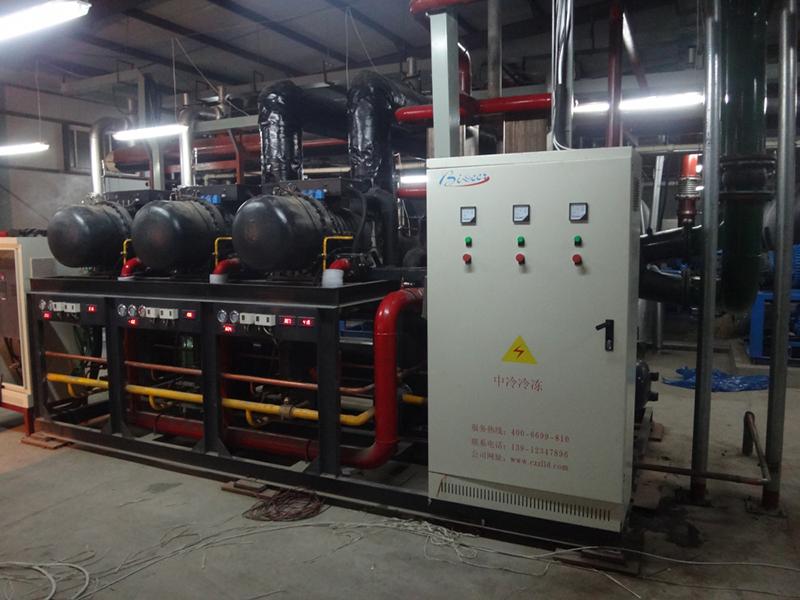

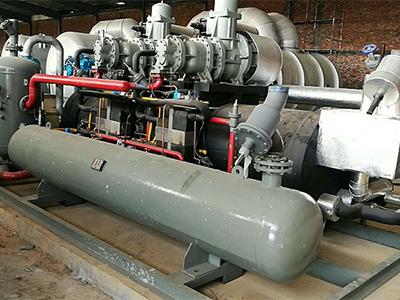

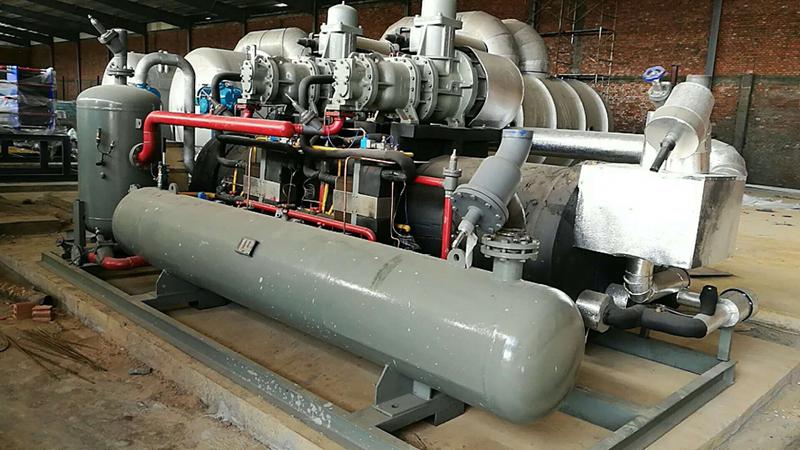

Compressor: compressor brands are primarily BOCK (Germany), FRASCOLD (Italy), and KOBELCO (Japan), each of which has an excellent freeze performance and reliability.

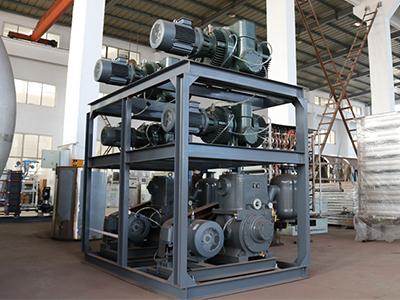

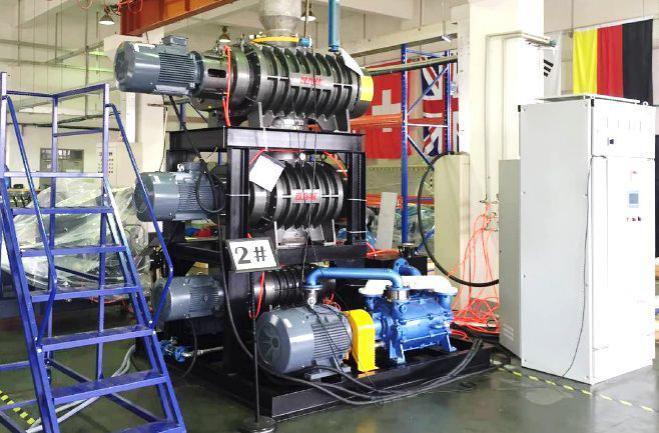

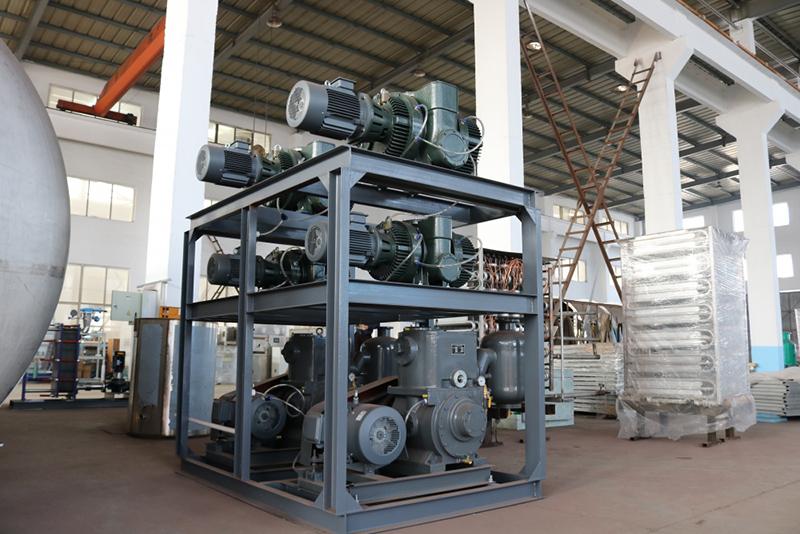

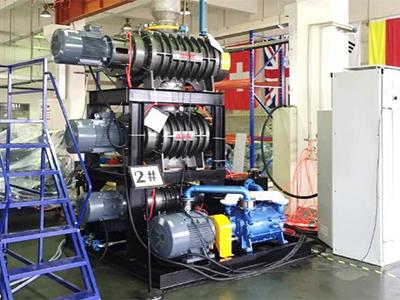

Vacuum pump: vacuum pump brands are primarily TUTHILL KINNEY (USA), LEYBOLD, and ULVAC (Japan), each of which has an excellent accuracy and vacuum effect.

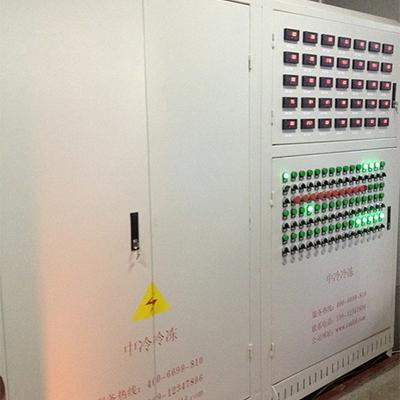

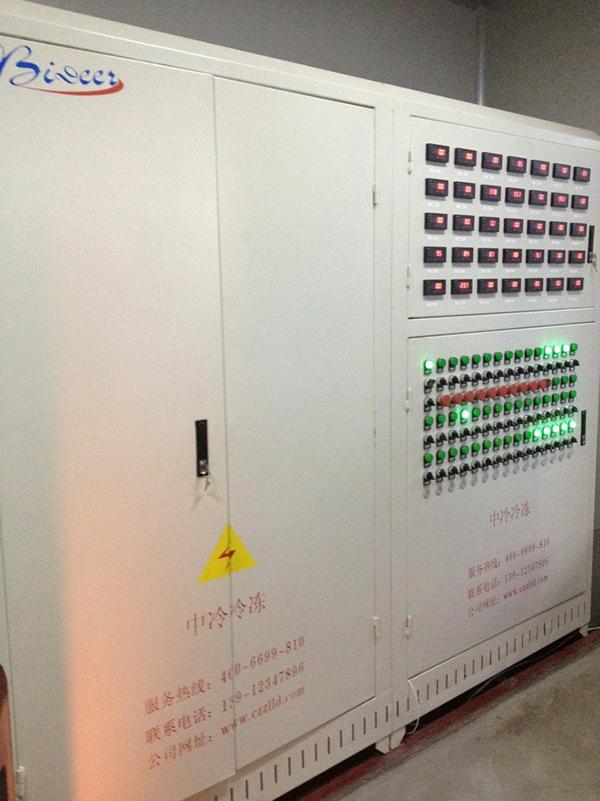

- All devices can be controlled manually and automatically on screen.

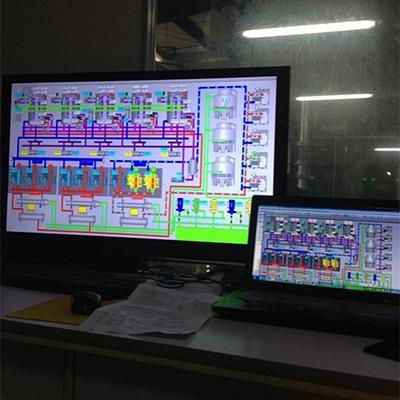

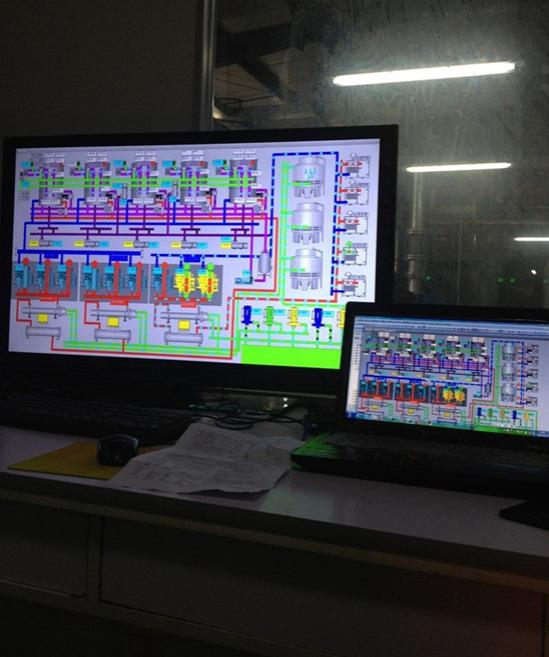

- Display, store and viewing of a variety of temperatures, vacuum degree and corresponding curves, all simultaneously.
- Fault-alarming function
