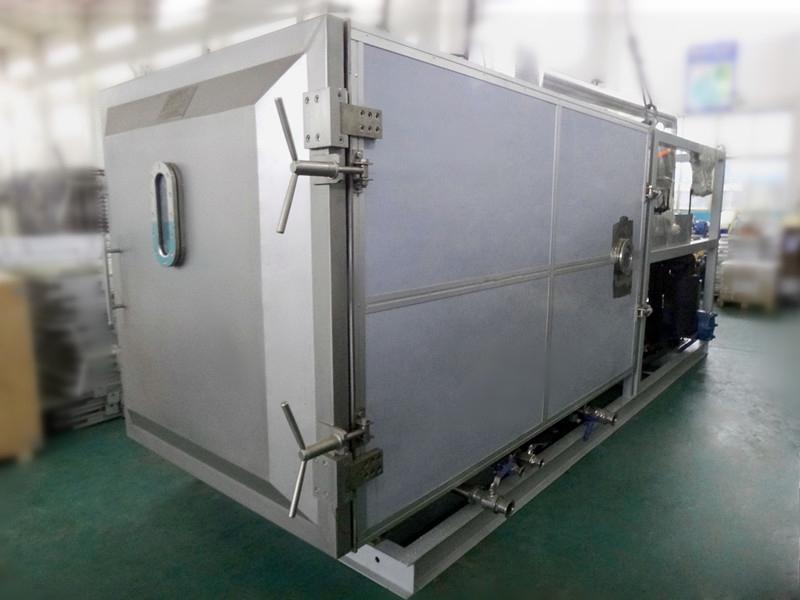

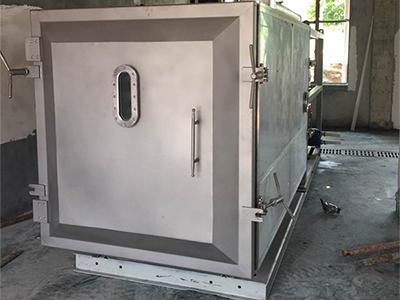

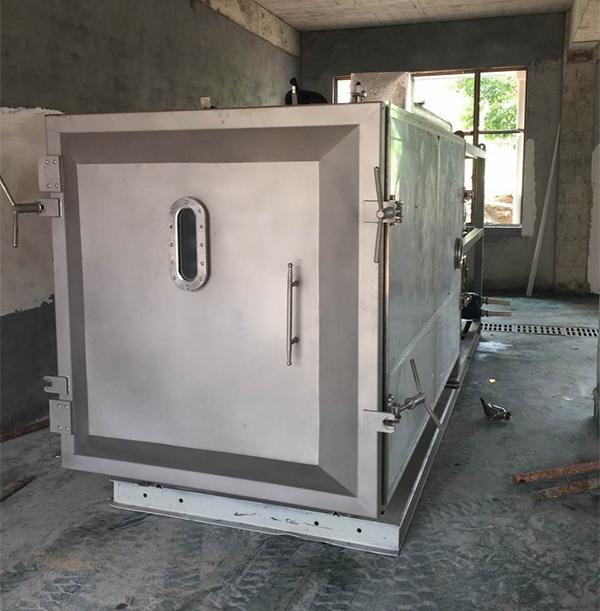

The BLK100kg lyophilization equipment freeze dryer features a capacity of 100kg with an effective freeze drying area of 10m2. It is applicable to the freeze drying of produce, flowers, medicines, bio-products, chemical materials and liquid food.
We can customize the capacity and configurations of the BLK100kg lyophilization freeze dryer.
Freeze dried fruits and flowers
|Model || BLK100kg |
| Shape and Size || Square 4700*1800*2300mm |
| Installed Power || 26kw- actual usage generally ranges between 60 60 80% of the full power, i.e 15-20kW. |
| Tray's Area || 10.01m2 |
| Shelf || 8 |
| Cold Trap Temperature || -45℃~-60℃ |
| Vacuum Degree || ≥1Pa |
| Heating way || silicone oil electric heating |
| Capacity || 100KG |
* Not only do we offer the above models, but we can customize the freeze dryers to have a 0.5m2-200m2 effective freeze-drying area based on customer requirements.
- Different from traditional drying equipment that requires an additional quick freeze machine or cold storage, this freeze dryer completes both freezing and drying.
- It saves anywhere between 20 and 30% of energy when compared to other similar products available on the market today.
- High automation degree: a single operator can operate multiple devices, saving labor costs.
- The waste heat recovery system developed in house is used, saving operation costs.

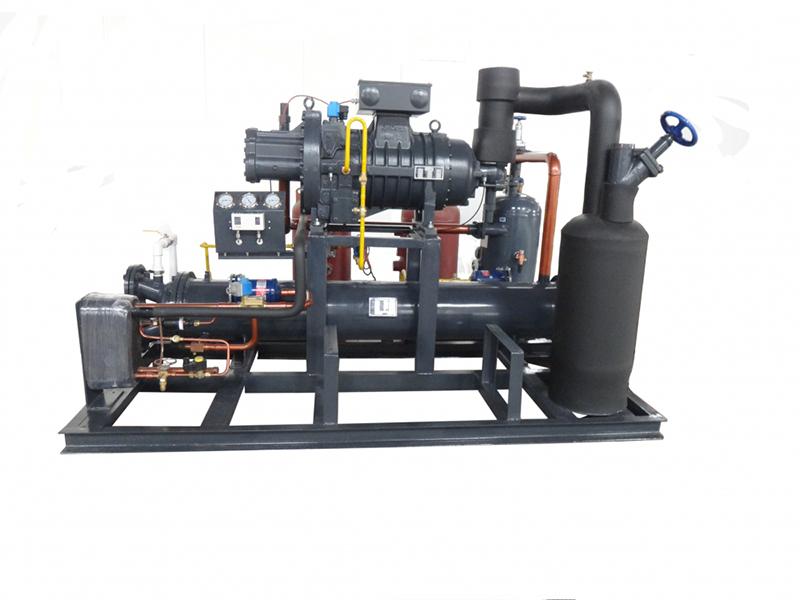

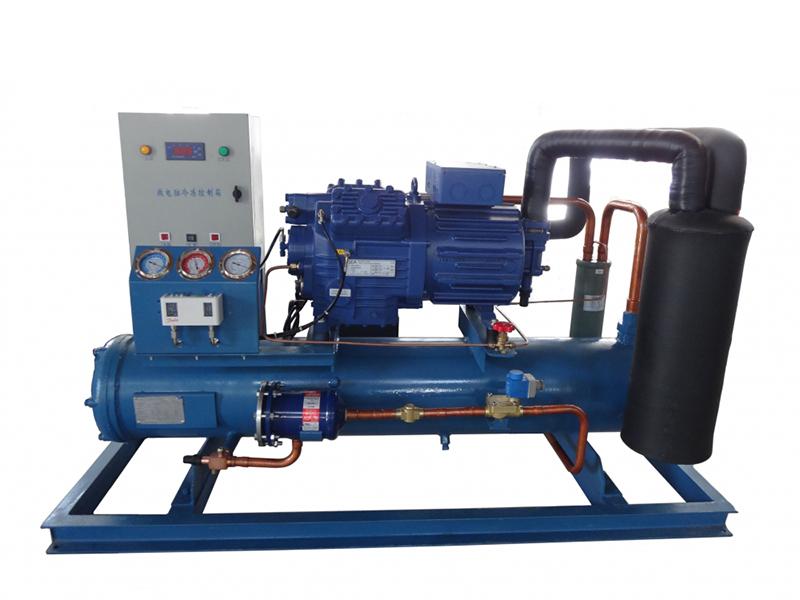

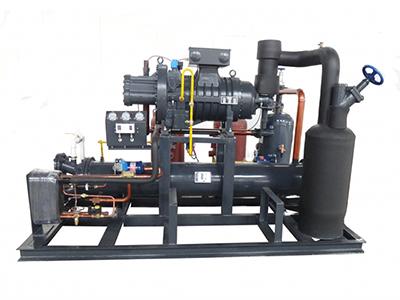

Compressor: compressor brands are primarily BOCK (Germany), FRASCOLD (Italy), and KOBELCO (Japan), each of which has an excellent freeze performance and reliability.

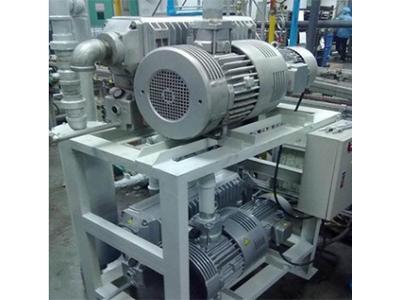

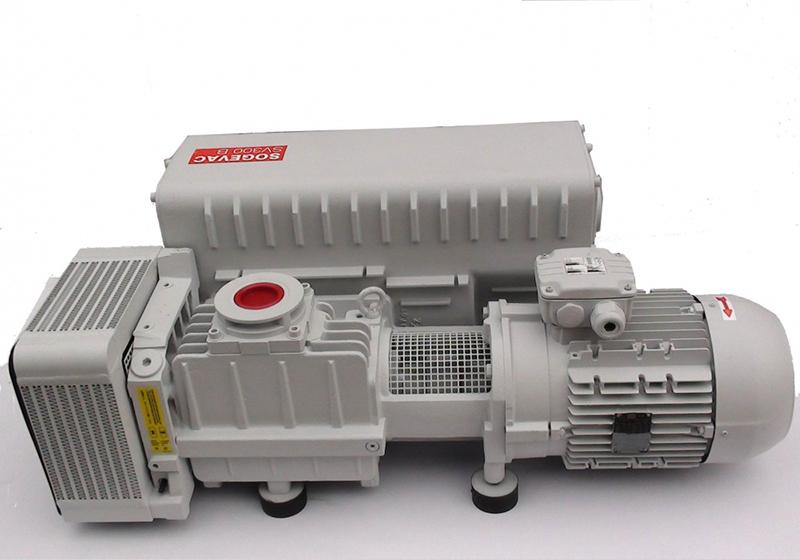

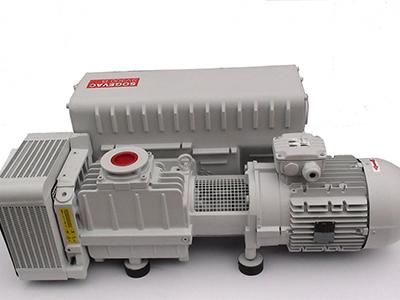

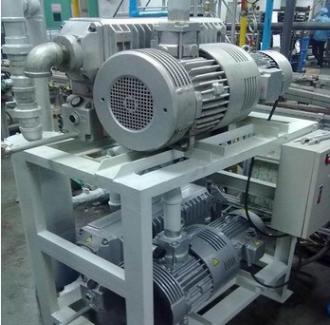

Vacuum pump: vacuum pump brands are primarily TUTHILL KINNEY (USA), LEYBOLD, and ULVAC (Japan), each of which has an excellent accuracy and vacuum effect.

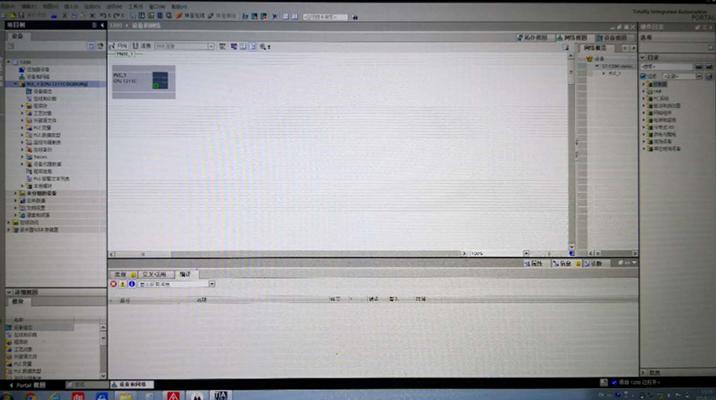

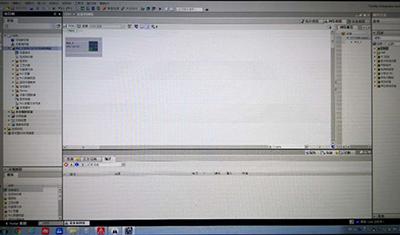

- All devices can be controlled manually and automatically on screen.

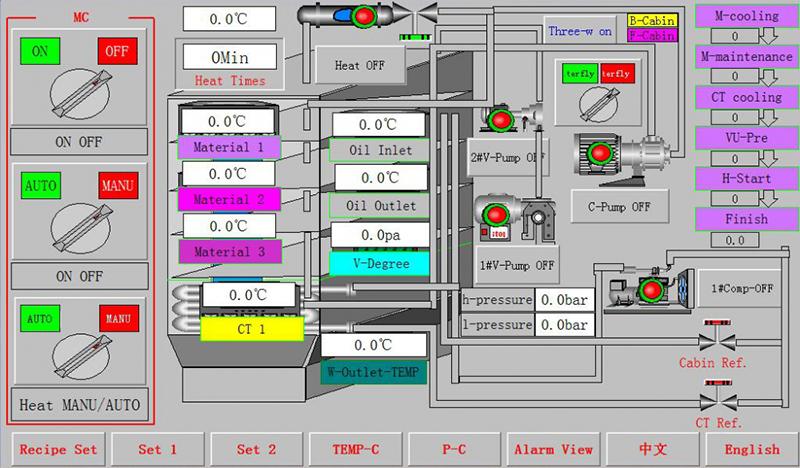

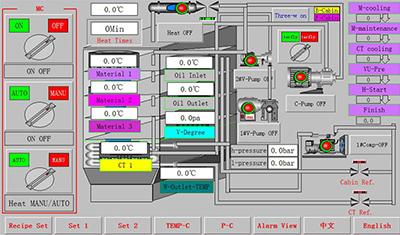

- Display, store and viewing of a variety of temperatures, vacuum degree and corresponding curves, all simultaneously.
- Fault-alarming function
